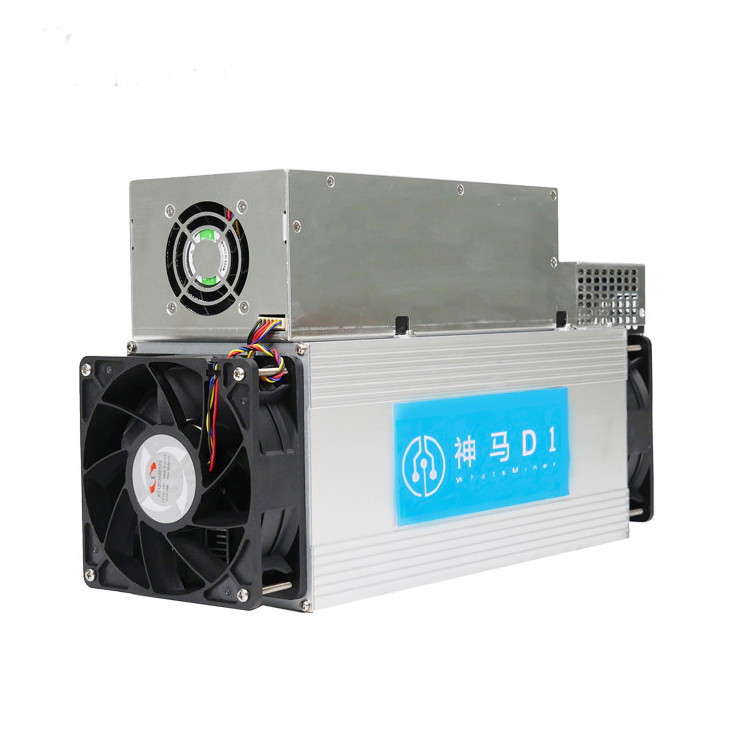

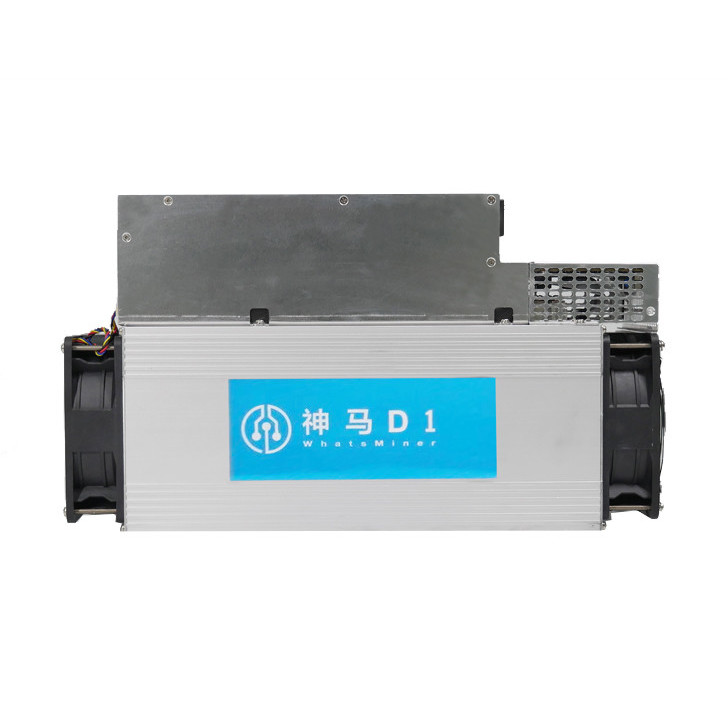

MicroBT Whatsminer D1 48T 2200W BLAKE256R14 DCR MINER FinFET Chip
| Also known as | Whatsminer DCR 48Th/s, D10V1 |
|---|---|
| Release | November 2018 |
| Size | 130 x 220 x 390mm |
| Weight | 8500g |
| Chip boards | 3 |
| Chip name | FinFET |
| Chip size | 16nm |
| Chip count | 315 |
| Noise level | 75db |
| Fan(s) | 2 |
| Power | 2200W |
| Voltage | 12V |
| Interface | Ethernet |
| Temperature |
5 - 45 °C |
Whatsminer D1
MICROBT WHATSMINER D1 DCR is a Decred (DCR) miner that uses the Blake 256R14 algorithm Asic miner .whatsminer D1 DCR mines Decred (DCR) with a maximum hashrate of 48TH and uses the 16nm Asic chips technology, it is is designed and manufactured by the MICROBT technology company located in Beijing, China.
The MICROBT technology company is specialized in blockchain technology, providing an integrated circuit chip and manufacturing mining equipment. The MicroBT Whatsminer D1 DCR was released in November 2018 and is built with the TSMC 16nm chips technology, which improves system performance and the most efficient and profitable Decred (DCR) miner.

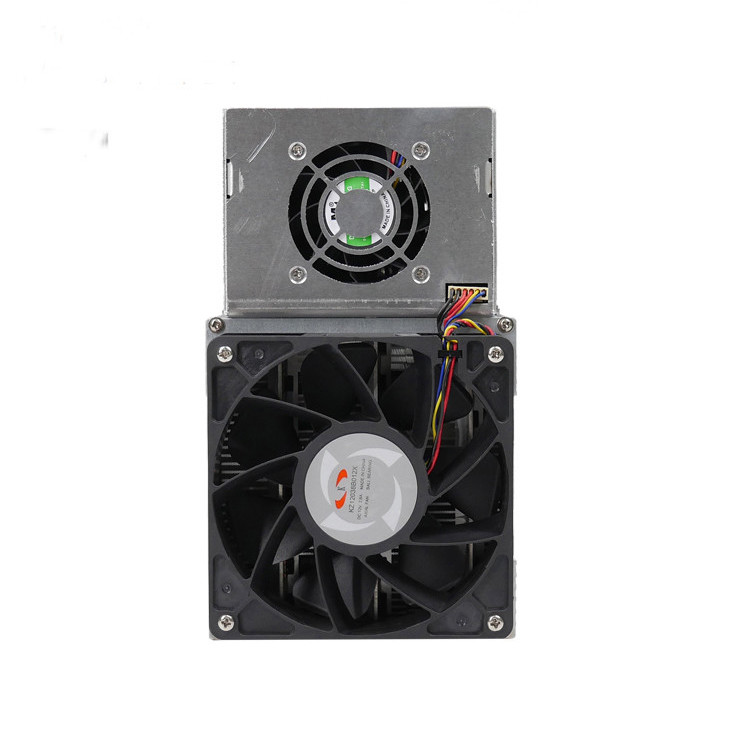

The Whatsminer D1 DCR is manufactured with an advanced 2 fan technology for heat dissolution and includes a power supply unit.
Whatsminer D1 DCR miner enables its users to mine Decred (DCR) with the maximum hashrate of 48TH/s and its power consumption of 2200W ± 10%, A power efficiency of 0.046 J/GH, cooling of 2 x 12038 fans, A power dimensions of 130mm (L)* 220mm (W)* 390mm (H) and also an operating temperature of -5c-40c. Mining with Whatsminer D1 DCR miner makes mining very easy, efficient, and profitable for its users.
1.Integrative design makes the rate of on board increased,the power ratio 45W/T is improved compared with the official parameters released earlier .
2.The performance is strong, the average hash rate is 48T, the power is less than 2200W, and the comprehensive unit hash rate is 45W/T. It is the Blake25 server with the largest single hash rate and the best power ratio in the market at present.
3.WhatsMiner D1 is the same stable as M10. During the test,the machine didn’t appear any problems but has been running stably for a long time. The hash rate,power and temperature is constant.
MicroBT belief has been adhering to the belief Beyond the Dream Success is visible to research and development machine. D1 will be limited release avoid hash rate increasing too fast to protect peaceful development of the ecology according to official published
